    HEAT TRANSFER SECTOR
    SEAMLESS & WELDED
    STRAIGHT & U-BENDS

    HEAT TRANSFER – SEAMLESS & WELDED
    TUBES FOR HEAT EXCHANGERS

    Item

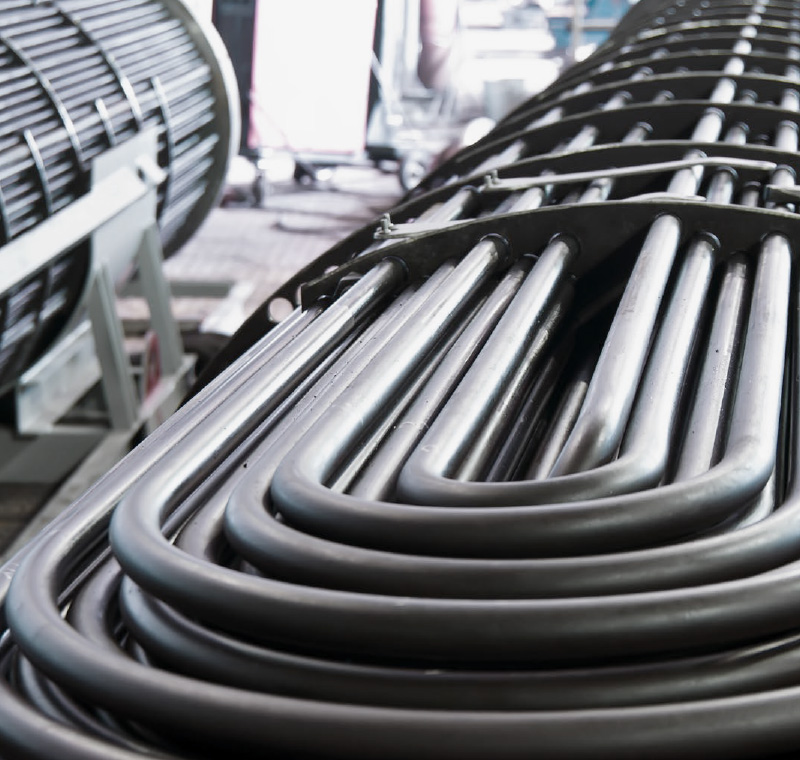

    Stainless Steel Seamless & Welded Tubes – Straight & U-Bend

    Applicable Specifications

    Seamless : ASTM A213, ASME SA213, SA688, EN10216-5 TC1 or TC2

    Welded : ASTM A249, A269, ASME SA249, SA688, EN10217-7 TC1 or TC2

    Typical Materials
    304
    304L
    316L
    321
    1.4301
    1.4307
    1.4404
    1.4541
    316Ti
    S31803
    S32205
    Ti Gr.2
    1.4571
    1.4462
    Finish

    AP | Annealed & Pickled | CFD

    BA | Bright Annealed | CFA

    Dimension

    Outer Diameter : 1/8” (3.18mm) to 2” (50.80mm)

    Wall Thickness : 0.015” (0.38mm) to 0.120” (3.05mm)

    Length : Custom Lengths

    Technical Requirements

    100% Eddy Current Tested acc. to ASTM A1016/A1016M & E426

    100% Hydrostatic Tested at 1000psi [7MPa], Min.5 seconds

    100% Air Under Water Pneumatic Tested (optional)

    100% Ultrasonic Tested acc. to ASTM B829 (optional)

    Packaging

    Material test report in accordance to EN10204 3.1

    Material test report in accordance to EN10204 3.2 (optional)
    Third party inspection available
