FOR OIL & GAS, DOWNHOLE &
INSTRUMENTATION APPLICATIONS

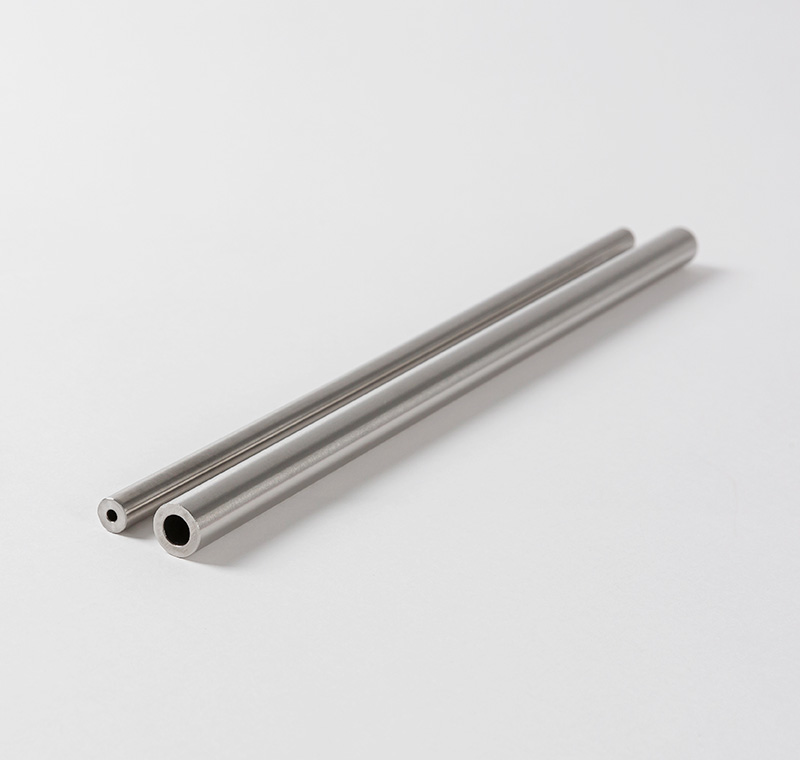

Stainless Steel Seamless or Welded & Drawn Tube – Straight & Coiled
ASTM A213, A269, ASME Sec. II Part A SA213, SA269, EN10216-5, EN10217-7
NACE MR0175, ISO 15156
NACE MR0103, ISO 17495
304, 304L, 316L, 316L-S2 (Sulfur 0.005-0.015%)
EN1.4301, EN1.4307, EN1.4404, EN1.4541, EN1.4571, EN1.4462, EN1.4435, EN1.4876
* Other materials available upon request
BA | Bright Annealed
OD mechanical polish to 240 or 320 grit available for straight tubings
OD | Straight : 1/16” (1.59mm) to 2” (50.80mm)
OD | Coiled : 1/16” (1.59mm) to 1” (25.40mm)
Wall Thickness : 0.01” (0.25mm) to 0.120” (3.05mm)
Length | Straight : 10’ (3.048m) or 20’ (6.096m)
Length | Coiled : Maximum 100kgs per coil / without orbital welding
* Please contact us for other special dimensions
100% Eddy Current Tested acc. to ASTM A1016, A1016M, E426
100% Hydrostatic Test at 1000psi [7MPa], Min. 5 seconds
100% Visual & Surface inspected
Intergranular Corrosion Tested acc. to ASTM A262 Practice E
Straight Tubing | individually PE end-capped, bundle sleeved, wooden box packaging

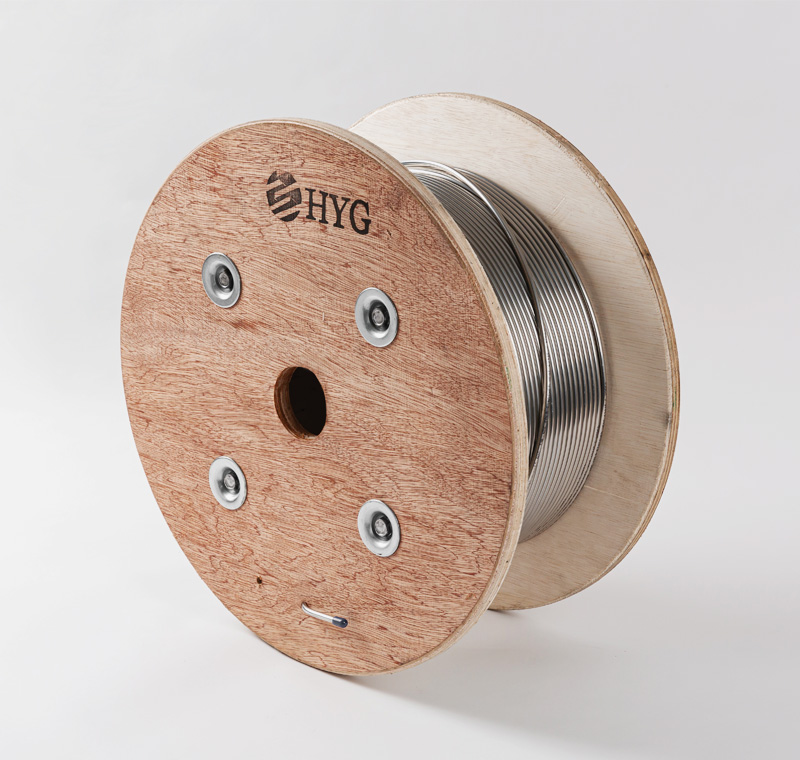

Coiled Tubing | supplied in loose coils or in wooden reel, stacked in wooden pallets or wooden box
SPECIAL ALLOY SEAMLESS TUBES
Special Alloy Seamless Tubes
ASTM B165, ASTM B167
NACE MR0175, ISO 15156
NACE MR0103, ISO 17495
N04400, N08825, N06600, N06625, 904L
* Other materials available upon request
BA | Bright Annealed
OD mechanical polish to 240 or 320 grit available for straight tubings
OD | Straight : 1/16” (1.59mm) to 2” (50.80mm)
OD | Coiled : 1/16” (1.59mm) to 1” (25.40mm)
Wall Thickness : 0.01” (0.25mm) to 0.120” (3.05mm)
Length | Straight : 10’ (3.048m) or 20’ (6.096m)
Length | Coiled : custom lengths
* Please contact us for other special dimensions
100% PMI tested
100% Eddy Current Tested acc. to ASTM B829
100% Hydrotested at 1000psi [7MPa], min 10 seconds
100% Visual & Surface inspected
Straight Tubing | individually PE end-capped, bundle sleeved, wooden box packaging
Coiled Tubing | supplied in loose coils or in wooden reel, stacked in wooden pallets or wooden box
SPECIAL ALLOY SEAMLESS TUBES
| Material | PVC | FR PVC | HR PVC | TPU | HFFR PE | PE | XLPE |
|---|---|---|---|---|---|---|---|
| Tensile Strength (kgf/mm²) | 1.2~1.4 | 1.3~1.8 | 1.2~1.7 | 2.0~2.5 | 1.0~1.4 | 2.3~2.8 | 2.0~2.5 |
| Service Temperature (°C) | -40~+70 | -40~+70 | -50~+105 | -50~+90 | -45~+70 | -75~+75 | -50~+90 |
| Elongation (%) | 200~300 | 200~400 | 200~350 | 400~600 | 500~600 | 650~750 | 550~650 |
| Hardness Shore A | 86~90 | 87~91 | 73~77 | 88~92 | N/A | N/A | N/A |
| Hardness Shore D | N/A | N/A | N/A | N/A | 48~50 | 59~61 | 50~52 |

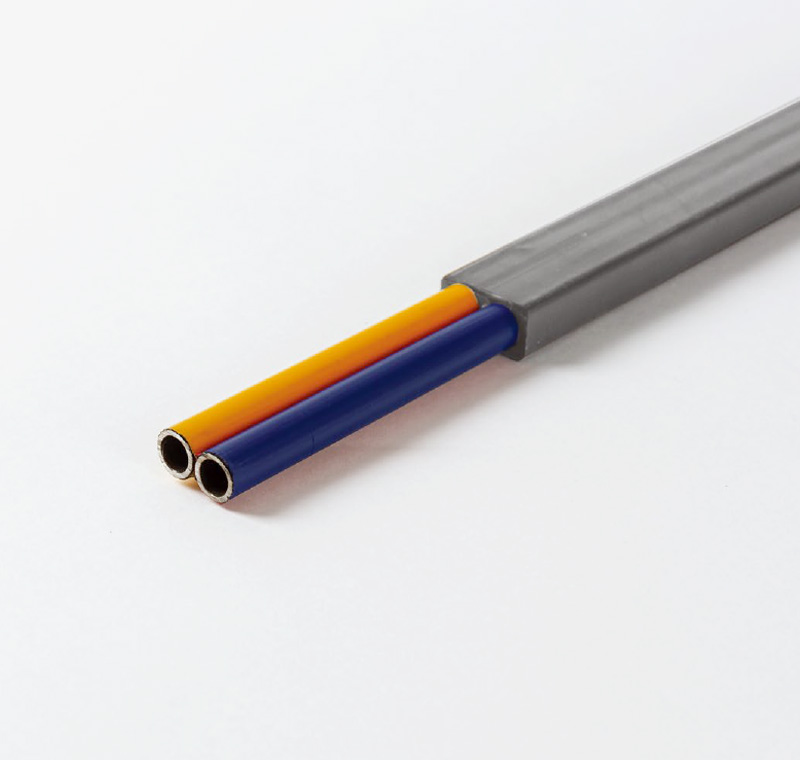

304, 304/L, 316L, N04400, N08825, etc.
Seamless or Welded
Coiled : max OD 1” (25.4mm) x length 100kgs based
Straight : max OD 2” (50.8mm) x length max 8m
* Orbital weld option available for longer lengths for coiled tubes
TPV(main), PVC, FR PVC, HR PVC, TPU, HFFR PE, PE, XLPE
Square, Rectangular, Round
304, 304/L, 316L, N04400, N08825, etc.
Seamless or Welded
Coiled : max OD 1” (25.4mm) x length 100kgs based
Straight : max OD 2” (50.8mm) x length max 8m
* Orbital weld option available for longer lengths for coiled tubes
